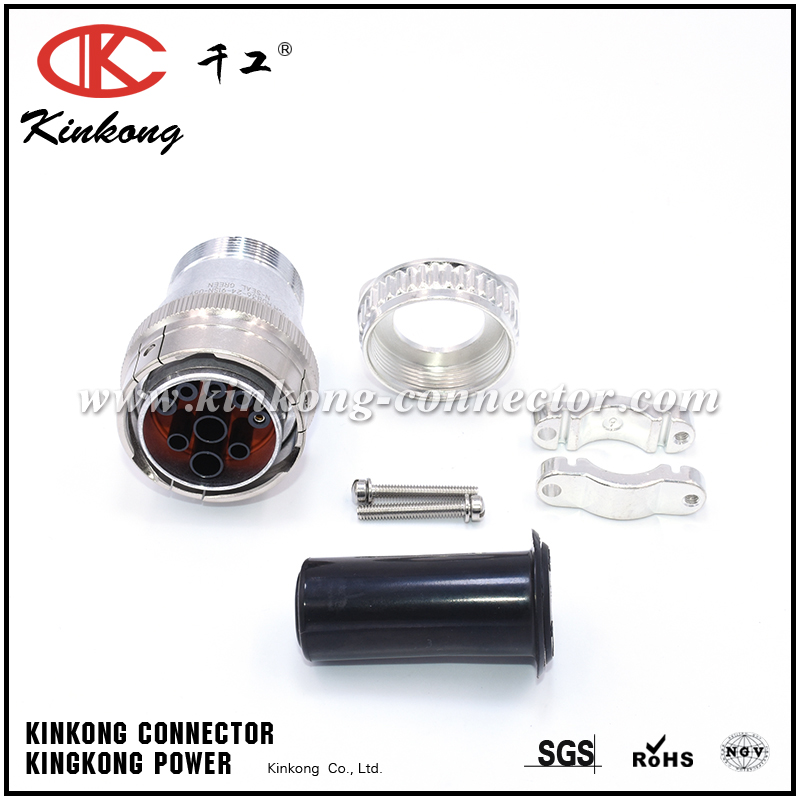

Product Type Features

Connector Shape : Circular
Connector System : Wire-to-Wire
Connector & Housing Type : Housing for Female Terminals
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable
Primary Locking Feature : Contact Retainer
Mixed & Hybrid Connector : Yes
Configuration Features

Connector Seal Code : N Seal
Connector Modification : Cable Clamp
Number of Positions : 9
Electrical Characteristics

Operating Voltage (VAC): 250
Operating Voltage (VDC): 250
Nominal Voltage Architecture (V): 250
Body Features

Cable Exit Angle : 180°
Contact Features

Contact Type : Socket
Contact Size : Size 12, Size 16, Size 8
Mating Pin Diameter (mm): 1.6, 2.4, 3.6
Mating Pin Diameter (in): .063, .094, .142
Contact Current Rating (Max) (A): 13, 25, 60
Mechanical Attachment

Mating Alignment : With
Mating Alignment Type : Guide Slot
Strain Relief : With
Connector Mounting Type : Panel Mount
Terminal Position Assurance : No
Housing Features

Housing Material : Aluminum Alloy
Dimensions

Compatible Insulation Diameter Range (mm): 1.4 – 3.8, 3.6 – 5.2
Compatible Insulation Diameter Range (in): .055 – .15, .14 – .204
Product Length : 49.3 mm [ 1.94 in ]
Product Width : 49.3 mm [ 1.94 in ]
Connector Height : 81 mm [ 3.19 in ]
Usage Conditions

Operating Temperature (Max) : 125 °C [ 257 °F ]
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application

Circuit Application : Power
Industry Standards

Degree of Protection : IP67
